Fast Tying 2400pcs/H Automatic Zip Tie Machine For Copper Tubing Coils
Automatically tying nylon cable ties on copper tubing coils, saving workers and time!
Description of nylon cable tie machines

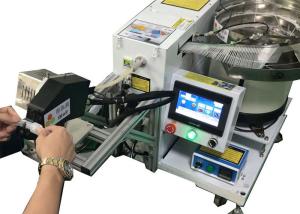

1. Automatic cable tie installing machine consists of the host, vibration bowl and cable tie gun.
2. It is made by structural steel, steel alloy or other metal. It is durable.
3. The cable tie gun is fixed in the table or assembly line and triggered by foot pedal.
4. Using with nylon cable ties T25100, width 2.5*length100mm.
5. Handler could adjust the tension forces through turning a knob in the zip tie gun.
6. The waste of nylon cable ties can be collected into a box.
7. Bundle cycle time: 0.9S per cable tie
8. When handler treads foot pedal, nylon zip ties would be transferred to tie gun, then wrapped, tightened and cut off.
Information of automatic cable tie machine
| Model | SWT25100F |
| Cable tie gun | Cable tie gun |
| Batteries included | No |
| Batteries required | No |
| Applicable cable tie type | T25100 |
| Applicable cable tie width | 2.5mm |
| Applicable cable tie length | 100mm |
| Applicable cable tie head | L4.8 * W4.8 * H3.8mm |
| Bundle diameter | 2mm -18mm |
| Bundle forces | 20N - 80N, adjustable |
| Bundle speed | 0.9S/cable tie |
| Bundle productivity | 2400pcs/h, including the time of picking and placing products |
| Host machine | L67*W66*H67cm |
| Cable tie gun | L27.8*W24*H14.9cm |
| Voltage | AC220V, 50/60Hz |
| Pneumatic pressure | 0.5MPa |
Advantages of automatic zip tie gun
1. Tying cable ties fast and stable.
2. This automatic cable tie machine is able to handle the work pieces with step features.
3. Cable tie bundle machine can deal with quantities of nylon zip ties efficiently.
4. Cable tie gun can be applied to full automation line.
Applications
1. Copper tubing coils of refrigeration, soft plastic tubes
2. Sealed bags in food industry/mining industry
3. PV cable industry
Trade terms
| Sea port | Shenzhen, Huizhou |
| Payment | 100% TT before shipment |
| Lead time | 15 working days |
| Packing | Wooden cases |
| Warranty | 12 months and tech support forever |
Packing details
Automatic cable tie machine will be packed in 2 wooden cases.
| Item | Packing size/wooden case | G.W./kg | N.W./kg |
| Host machine, tie gun and others | L74 * W70 * H90cm | 100kg | 79kg |
| Vibration bowl | L67 * W55 * H63cm | 66kg | 52kg |
FAQ
1. What does the knob do?
Adjust the tension on the tie gun. Cable ties would be cut once reach the tension.
2. Does the tie gun have the option of not cutting?
Yes, it does but is customized. Please contact our sales team.
3. Does zip tie gun have English manual?
Yes, it has English manual.
4. Can I just buy the zip tie gun only?
The zip tie tool gun works with the host machine, or it can’t be drived.
